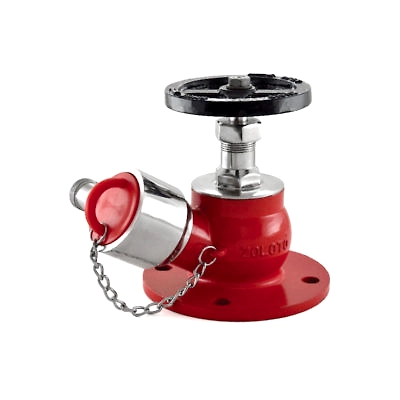

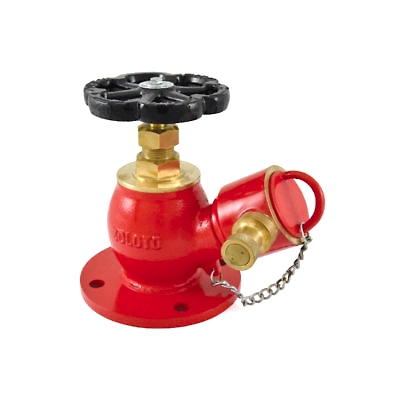

Landing valve (fire hydrant valve)
25679.00
-
Product is not available
Brand:
Country Of Origin : India
Landing valve
Controlled through manual Work on water, air, oil pipes line. In fire safety, at emergency situation
Used widely in oil & gas industry, steel plants, pharmaceutical industry, chemical industry.
One time fixed product.
Design Standard IS 5290.
Confirming to Type A specification.
Screwed in Bonnet having instantaneous coupling with single outlet.
PTFE Gland Packing for longer life and smooth operation of stem.
Large flow way area to get full flow of water.
Leakage proof by virtue of elastomer seat.
Smooth operation of blank cap for quick mounting of water pipe.
Screwed in Bonnet having instantaneous coupling with single outlet.
PTFE Gland Packing for longer life and smooth operation of stem.
Large flow way area to get full flow of water.
Leakage proof by virtue of elastomer seat.
Smooth operation of blank cap for quick mounting of water pipe.
Life long rust free service.

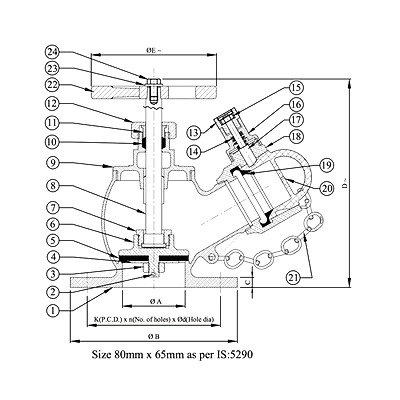

1 Body Stainless Steel IS 3444 Gr. 1 1
2 Chain Carbon Steel – – – 1
3 Disc Nylock Nut Carbon Steel – – – 1
4 Washer Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
Life long rust free service.
Test Pressure (Hydrostatic) :
Shell : 21 kg/cm²g (300 psig)
Seat : 14 kg/cm²g (200 psig)
Maximum Working Temperature : 110°C
Size (Inches) Size (mm) ØA ØB C +3 D ~ ØE ~
3 80 75 200 12 230 150
6 Disc Holder Stainless Steel IS 3444 Gr. 1 1
7 Check Nut Stainless Steel IS 3444 Gr. 1 1
8 Stem Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
9 Bonnet Stainless Steel IS 3444 Gr. 1 1
10 Gland Packing Asbestos Thread – – – –
11 Gland Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
12 Gland Nut Stainless Steel IS 3444 Gr. 1 1
13 Knob with Cap Stainless Steel IS 3444 Gr. 1 1
14 Spring Stainless Steel IS 4454 Part 4 Gr. 2 1
15 Cam Tooth Nut Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
16 Cam Housing Stainless Steel IS 3444 Gr. 1 1
17 Cam Tooth Stainless Steel IS 3444 Gr. 1 1
18 Instantaneous Coupling Stainless Steel IS 3444 Gr. 1 1
19 Washer Rubber IS 937 1
20 Blank Cap Aluminium / ABS Plastic IS 617 / – – – 1
21 Handwheel Cast Iron IS 210 Gr. FG 200 1
22 Washer Carbon Steel – – – 1
23 Nut Carbon Steel – – – 1
