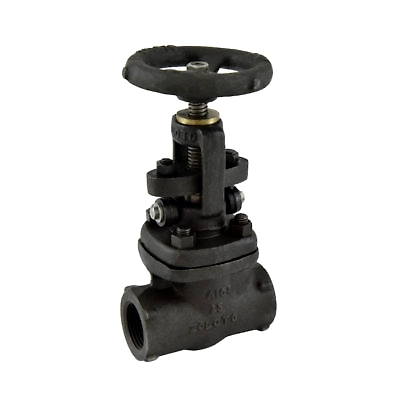

Forged Steel Globe Valve, Class-800 (Standard Bore))
2253.00
-
Product is not available
Brand:
Country Of Origin : India
Design Standard API 602 / BS EN ISO 15761 (BS 5352).
Body and Bonnet are Phosphated, to ensure maximum resistance from rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to BSPT / NPT / Socket Welded to ANSI B16.11.
Test Pressure :
Shell (Hydrostatic) : 207 bar (3000 psig)
Seat & Back Seat(Hydrostatic) : 152 bar (2200 psig)
Seat (Pneumatic) : 6.9 bar (100 psig)
Maximum Working Temperature : 425°C
IBR API
