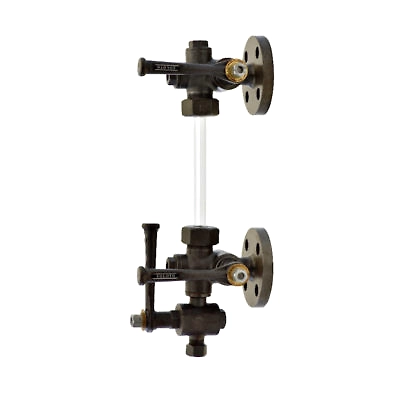

Cast Steel Sleeve Packed Water Level Gauge (Flanged) Article Code 1091
18815.98
-
Product is not available
Brand:
Country Of Origin : India
Flanged End to BS 10 Table ‘J’.
Automatic Shut Off Device in Water Arm.
Available for both, Right Hand and Left Hand.
Premium Quality Sleeve, Reinforced by metallic eye holes, is provided to avoid any clogging of passage.
Each piece is fitted with self adjusting inverted taper plug (Stainless Steel) which forms a seal in the renewable moulded asbestos sleeve.
Sleeve can easily be positioned by a rib which fits in the corresponding groove of the body.
Test Pressure (Hydrostatic) :
Shell : 48 kg/cm²g (700 psig)
Test Pressure (Steam) :
Seat : 24.50 kg/cm²g (350 psig)
Maximum Working Temperature : 425°C
IBR
