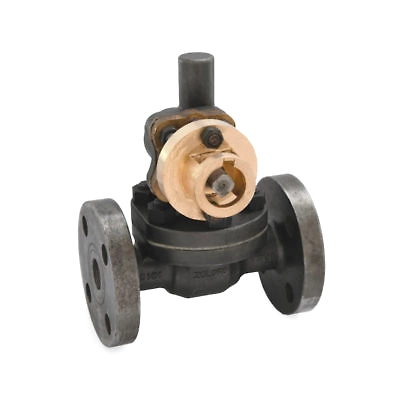

Cast Steel Parallel Slide Blow Off Valve (Flanged)
14765.00
-
Product is not available
Brand:
Country Of Origin : India
Flanged Ends to BS 10 Table ‘J’.
Maintains fluid tightness and is easy in operation because of sliding action of discs.
Discs are kept in close contact with body rings by means of a spring when the valve is under pressure.
Premium Quality lubricated Gland Packing, Bolted Bonnet.
Valve is operated by means of Rack and Pinion arrangement, in such a manner that valve is opened fully with half turn of the box key.
Gland forms a locking guard which prevents removal of the key unless the valve is closed.
Test Pressure (Hydrostatic) :
Shell : 48 kg/cm²g (700 psig)
Test Pressure (Steam) :
Seat : 24.50 kg/cm²g (350 psig)
Maximum Working Temperature : 425°C
IBR
