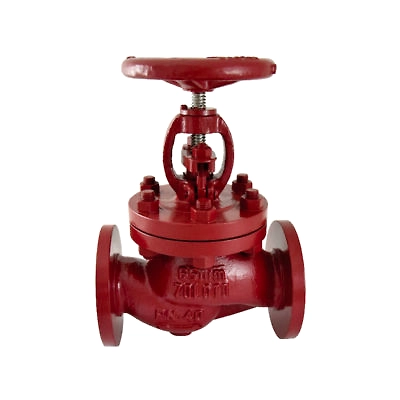

Cast Steel Globe Steam Stop Valve (Flanged)
4684.00
-
Product is not available
Brand:
Country Of Origin : India
Flanged Ends to DIN 2545 PN 40.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem, Bolted Bonnet.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Minimum pressure drop inside the body due to streamlined body design.
Handwheel Operated.
Provision for re-packing under pressure.
Suitable for thermic fluid application also.
Test Pressure (Hydrostatic) :
Shell : 60 bar (870 psig)
Maximum Working Pressure : 40 bar (580 psig)
Maximum Working Temperature : 425°C
IBR
