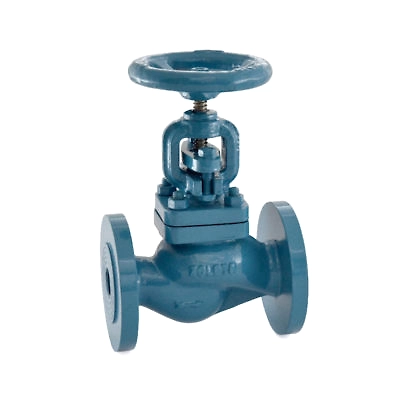

Cast Iron Globe Steam Stop Valve Straight Pattern (Flanged)
2716.00
-
Product is not available
Brand:
Country Of Origin : India
Flanged Ends to DIN 2533 PN 16RF.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Provision for re-packing under pressure.
Minimum pressure drop inside the body due to streamlined body design.
High lift of the seat to avoid any obstruction in the flow.
Sturdy and comparatively bigger sized wheel provided to give sufficient torque for easy operation.
Test Pressure (Hydrostatic) :
Shell : 26 kg/cm²g (370 psig)
Working Pressure (Steam) : 13 kg/cm²g (185 psig)
Maximum Working Temperature : 220°C
IBR
