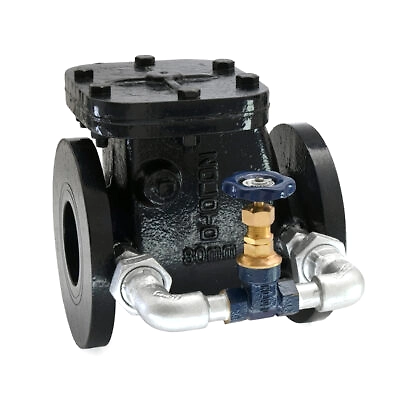

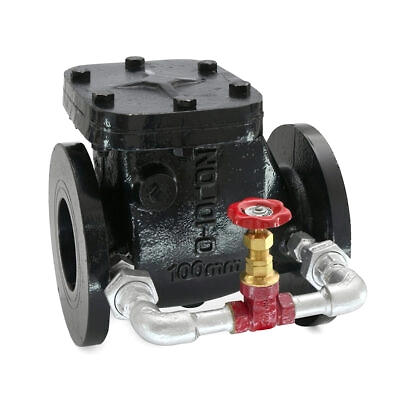

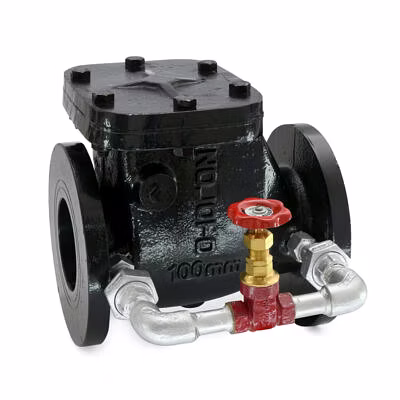

By pass check valve
6310.00
-
Product is not available
Brand:
Country Of Origin : India
Design Standard IS 5312 – 1.
Flanged Ends to IS 1538.
Seating design – Swing Type.
Bolted Cover.
Renewable Seat with Premium Quality Rubber Flap.
Flexible installation (Horizontal / Vertical)

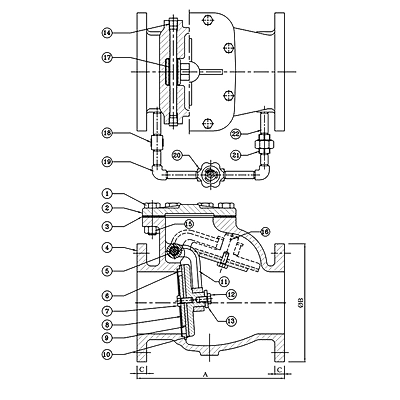

1 Bolts Carbon Steel IS 1363 Part 1 Class 4.6
As Reqd.
2 Cover Cast Iron IS 210 Gr. FG 200 1
3 Gasket Nitrile Rubber IS 638 Type B 1
4 Body Cast Iron IS 210 Gr. FG 200 1
5 Hinge Pin Stainless Steel IS 6603 Gr. X04 Cr19Ni9 1
6 Body Seat Ring Bronze IS 318 Gr. LTB 2 1
7 Bolts Carbon Steel IS 1363 Part 1 Class 4.6 1
8 Washer Carbon Steel – – – 1
9 Disc Facing Nitrile Rubber IS 638 Type B 1
9 Disc Facing Nitrile Rubber IS 638 Type B 1
10 Disc Cast Iron IS 210 Gr. FG 200 1
11 Hinge Cast Iron IS 210 Gr. FG 200 1
1083C 1083Csizes
PN 1.0 –
Test Pressure (Hydrostatic) :
Shell : 1.5 MPa
Seat : 1.0 MPa
Maximum Working Temperature : 80°C
ISI
Size (Inches) Size (mm) A ØB C By Pass Size
2* 50 203 ±2 165 (+1.5/-1.0) 16 +2 1/2″
2 1/2* 65 216 ±2 185 (+1.5/-1.0) 16 +2 1/2″
3 80 241 ±2 200 ±4.5 21 ±3 1/2″
4 100 292 ±2 220 ±4.5 22 ±3 1/2″
5 125 330 ±2 250 ±4.5 22.5 ±3 1/2″
6 150 356 ±2 285 (+5.5/-2.5) 23 ±3 1/2″
8 200 495 ±3 340 (+5.5/-2.5) 24.5 ±3 1″
10 250 622 ±3 395 (+5.5/-2.5) 26 ±3 1″
Flanges as per IS 5312 Part 1
1 Pipe Union S.G.Iron IS 1865 Gr. SG400/15
11083C sizes
