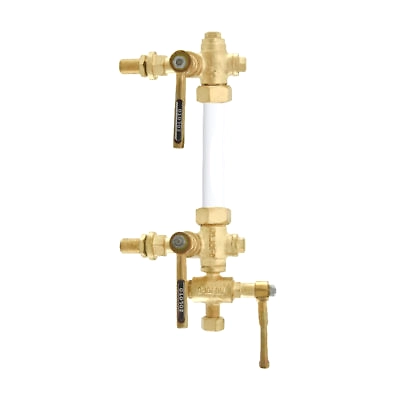

Bronze Sleeve Packed Water Level Gauge (Screwed)
14948.00
-
Product is not available
Country Of Origin : India
Screwed Male End to BSP.
Automatic Shut Off Device in Water Arm.
Set available for both, Right Hand and Left Hand operations.
Premium Quality Sleeve, Reinforced by metallic eye holes provided to avoid any clogging of passage.
Each piece is fitted with self adjusting inverted taper plug (Stainless Steel) which forms a seal in the renewable moulded asbestos sleeve.
Sleeve can easily be positioned by a rib which fits in the corresponding groove of the body.
Test Pressure (Hydrostatic) :
Shell : 35.15 kg/cm²g (500 psig)
Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
Maximum Working Temperature : 225°C
IBR
